Boss Industrial 8 Ton Electric Log Splitter Parts (ED8T20)

Boss Industrial 8 Ton Electric Log Splitter Parts (ED8T20)

$284.26

Boss Log Splitters

ED8T20 Parts

101 In Stock

310-874

-
+

Buy Boss Industrial 8 Ton Electric Log Splitter Parts. If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 800-780-2677

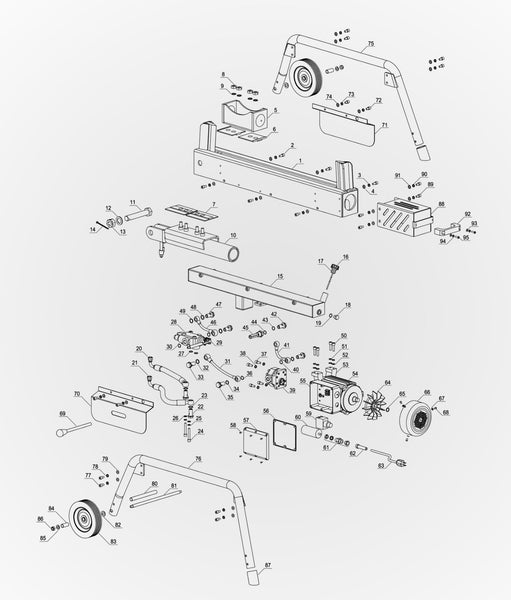

Please refer to the Table below to choose the parts correctly.



Item Part No. Description Specifications Qty
1 310-874 Machine Body Including End Wedges 8T 1
2 710-614 Inner Hex Head Bolt ZP, M8*15 6
3 750-834 Spring Washer ZP, M8 6
4 750-638 Flat Washer ZP, M8 6
5 530-447 Ram   1
6 530-801 Upper Nylon Cushion   2
7 530-802 Lower Nylon Cushion   2
8 720-884 Lock Nut PH, M14 4
9 750-300 Flat Washer PH, M14 4
10 530-493 Hydraulic Cylinder Ø63*473 1
11 760-175 Clevis Pin ZP, M24*140 1
12 750-634 Flat Washer M24 1
13 720-845 Bored Nut M24 1
14 760-721 Split Pin ZP, Ø4*45 1
15 540-974 Reservoir Tank New 8T 1
16 540-276 Dipstick w/ Ventilator ABS Ventilator, Dipstick: Ø5*77 6
17 730-655 O Seal Ring Ø15*3.1 2
18 710-872 Oil Drain Bolt PH, M14*12 1
19 750-158 Copper Seal Washer M14 1
20 560-416 Hydraulic Hose for B-Cavity SA-19/B-14, 3/8*375 1
21 560-418 Hydraulic Hose for A-Cavity SA-19/B-14, 3/8*300 1
22 710-896 Oil Tube Screw PH, M14*30 2
23 750-158 Copper Seal Washer M14 2
24 710-991 Inner Hex Head Bolt PH, M8*55 2
25 750-075 Spring Washer PH, M8 2
26 750-160 Flat Washer PH, M8 2
27 730-624 O Seal Ring Ø18*1.9 2
28 520-767 Hydraulic Valve 8T 1
29 520-683 Short Lever Ø12.7*153.5 1
30 730-564 O Seal Ring Ø20*1.9 1
31 560-535 Connecting Oil Tube B-14/B-16, Ø10*182 1
32 750-565 Copper Seal Washer M16 1
33 710-838 Oil Tube Screw PH, M16*30 1
34 750-158 Copper Seal Washer M14 1
35 710-896 Oil Tube Screw PH, M14*30 1
36 730-624 O Seal Ring Ø18*1.9 1
37 710-895 Inner Hex Head Bolt PH, M8*20 4
38 730-624 O Seal Ring Ø18*1.9 4
39 550-203 Hydraulic Pump 5.5 1
40 730-624 O Seal Ring Ø18*1.9 1
41 560-578 Oil Suction Tube B-14 x 2, Ø10*68 1
42 710-896 Oil Tube Screw PH, M14*30 2
43 750-158 Copper Seal Washer M14 2
44 730-088 O Seal Ring Ø24*2.4 1
45 540-038 Oil Filter Hex27 1
46 560-566 Oil Return Tube B-16 x 2, Ø10*80 1
47 710-838 Oil Tube Screw PH, M16*30 2
48 750-565 Copper Seal Washer M16 2
49 730-564 O Seal Ring Ø20*1.9 2
50 710-039 Inner Hex Head Bolt PH, M8*35 4
51 750-075 Spring Washer PH, M8 4
52 750-160 Flat Washer PH, M8 4
53 910-257 Motor Rear Cover 80 1
54 940-611 Electric Motor (Incl. 53-68) 2 HP 1
55 920-011 Connecting Box (Bottom)   1
56 920-506 Connecting Box (Rubber Ring)   1
57 920-853 Connecting Box (Cover)   1
58 740-477 Cross Recess Pan Head Screw ZP, M4*10 6
59 920-943 Power Switch, Non-Homing   1
60 920-980 Capacitor 60uf 1
61 930-800 Cable Fastener   1
62 930-511 Cable Bushing   1
63 930-182 Power Cable STJW 3/C 14AWG, Ø2.08*1600 1
64 910-194 Fan   1
65 760-548 Circlip Ø16 1
66 910-154 Fan Cover Ø162 1
67 750-270 Flat Washer ZP, M4 3
68 740-477 Cross Recess Pan Head Screw ZP, M4*10 3
69 520-002 Control Handle Lever w/ Grip Ø12.7*220 (Female) 1
70 350-144 Position Shield (Right)   1
71 350-295 Position Shield (Left)   1
72 710-084 Inner Hex Head Bolt PH, M8*15 4
73 750-075 Spring Washer PH, M8 4
74 750-160 Flat Washer PH, M8 4
75 320-921 Joint Legs and Log Rail (Left)   1
76 320-920 Joint Legs and Log Rail (Right)   1
77 710-084 Inner Hex Head Bolt PH, M8*15 8
78 750-075 Spring Washer PH, M8 8
79 750-160 Flat Washer PH, M8 8
80 340-250 Axle Bushing Ø16*1.2*168 1
81 340-090 Wheel Axle Ø12.7*335 1
82 750-621 Flat Washer ZP, M12 2
83 330-214 Wheel 7" * 1.8" 2
84 340-132 Bearing Spacer Ø16*1.2*36.8 2
85 750-525 Flat Washer ZP, M10 2
86 720-120 Lock Nut ZP, M10 2
87 320-825 Bumper   2
88 350-779 Safe Shield   1
89 710-879 Inner Hex Head Bolt PH, M8*12 4
90 750-075 Spring Washer PH, M8 4
91 750-160 Flat Washer PH, M8 4
92 320-511 Towing Handle   1
93 750-273 Flat Washer ZP, M6 2
94 750-823 Spring Washer ZP, M6 2
95 740-327 Cross Recess Pan Head Screw ZP, M6*20 2
