Boss Industrial 13, 16 and 20 Ton Dual Action Log Splitter Parts GD13T21, GD16T21, GD20T24

Boss Log Splitters

GD Series Parts

1 In Stock

310-850

-
+

Buy Boss Industrial 13/16/20 Ton Electric Log Splitter Parts. If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 800-780-2677

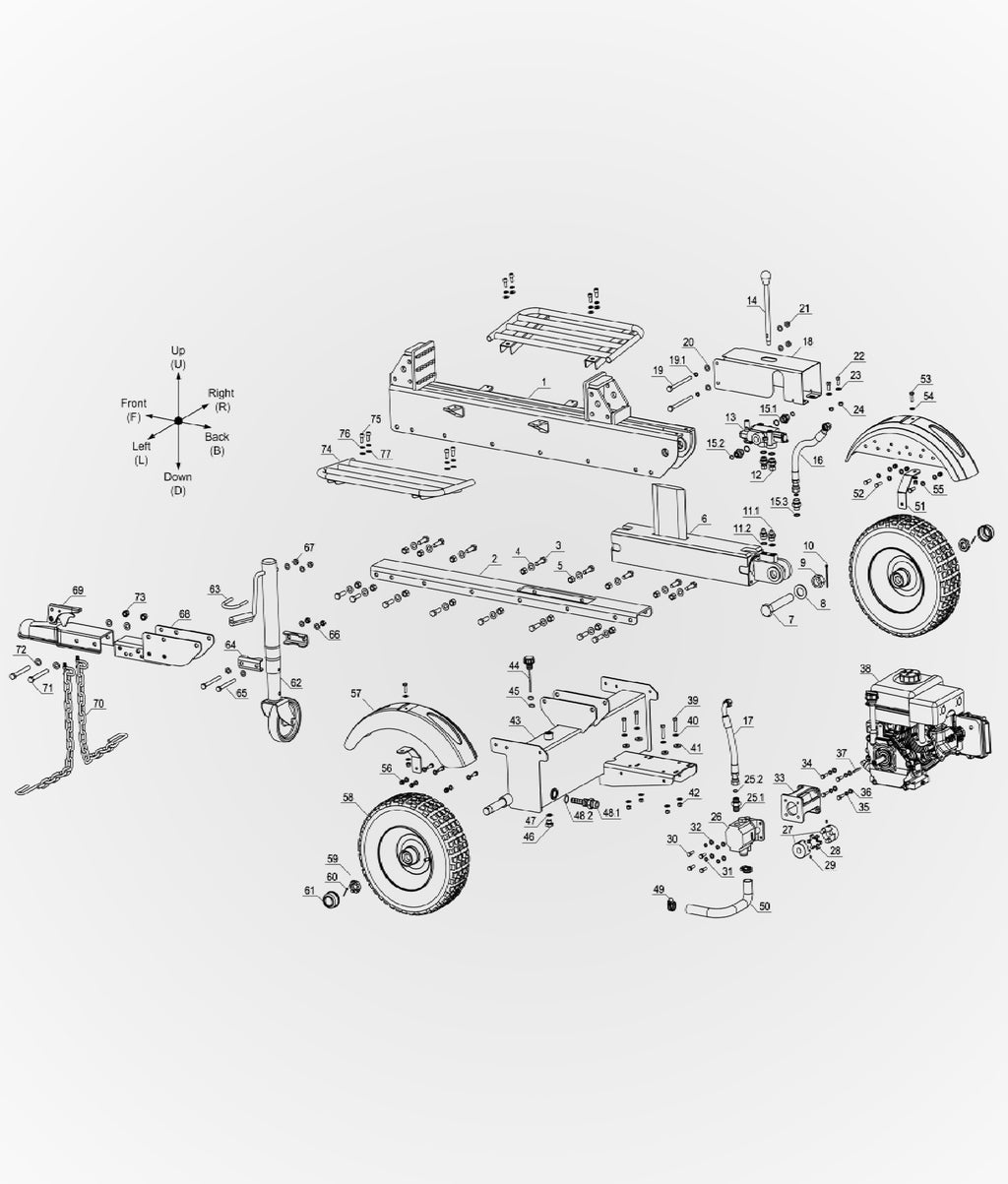

Please refer to the Table below to choose the parts correctly.



Item Part No. Description Specifications Qty
1 310-850 Machine Body incl. End Plates 13 Ton 115*298*6mm/130*140*10 1
310-853 Machine Body incl. End Plates 16 Ton 130*307*8mm/150*140*10
2 310-851 Machine Body Bottom 13 Ton W100 1
310-854 Machine Body Bottom 16 Ton W114
3 710-438 Hex Head Bolt ZP, M12*35 16
4 750-621 Flat Washer ZP, M12 16
5 720-536 Lock Nut ZP, M12 16
6 530-480 Cylinder, 13 Ton 3.0 in. 1
530-482 Cylinder, 16 Ton 3.5 in.
530-484 Cylinder, 20 Ton 4.0 in.
7 760-137 Pin, 13 Ton PH, M27*141 1
760-132 Pin, 16 Ton PH, M32*165
8 750-623 Flat Washer, 13 Ton PH, M27*4 1
750-677 Flat Washer, 16 Ton PH, M32*6
9 720-815 Bored Nut, 13 Ton PH, M27 1
720-872 Bored Nut, 16 Ton PH, M32
10 760-744 Split Pin Ø4*50 1
11.1 510-211 Hydraulic Adaptor Straight, Hex24 2
11.2 730-077 O Seal Ring Ø21*2.4 4
12 510-224 Hydraulic Adaptor Straight Swing, Hex24/19 2
13 520-766 Hydraulic Valve   1
14 520-405 Control Handle Lever Ø15*264 1
15.1 510-448 Hydraulic Adapter Straight, Hex27*36.5 3
15.2 730-619 O Seal Ring Ø15*1.9 3
15.3 730-077 O Seal Ring Ø21*2.4 3
16 560-409 Hydraulic Hose (Valve-Reservoir) 1/2"*350 1
17 560-403 Hydraulic Hose (Pump-Valve) 1/2"*300 1
18 350-200 Valve Cover 13 Ton W118 1
350-203 Valve Cover 16 Ton W135
19 710-669 Hex Head Bolt 13 Ton ZP, M10*130 (8.8) 2
710-614 Hex Head Bolt 16 Ton ZP, M8*15 4
19.1 750-834 Spring washer 16 Ton ZP, M8 4
20 750-525 Flat Washer, 13 Ton ZP, M10 4
750-638 Flat Washer, 16 Ton ZP, M8
21 720-120 Lock Nut 13 Ton ZP, M10 2
22 710-637 Hex Head Bolt ZP, M8*20 (8.8) 2
23 750-638 Flat Washer ZP, M8 2
24 720-500 Lock Nut ZP, M8 2
25.1 510-432 Hydraulic Adapter on Pump for Connecting Hose Straight, Hex27*45 1
25.2 730-619 O Seal Ring Ø15*1.9 1
26 550-308 Two Stage Pump 9 gpm (13T) 1
550-412 Two Stage Pump 11 gpm (16T)
27 550-702 Coupling Shaft 3/4" 1
28 550-706 Coupling Spider   1
29 740-600 Set Screw Black Oxide, M6*10 2
30 710-637 Hex Head Bolt ZP, M8*20 (8.8) 4
31 750-834 Spring Washer ZP, M8 4
32 750-638 Flat Washer ZP, M8 4
33 550-814 Pump Mount Al 1
34 710-632 Hex Head Bolt ZP, 5/16-24*20 (8.8) 4
35 750-844 Spring Washer Zinc, 5/16 4
36 750-617 Flat Washer ZP, 5/16 4
37 770-123 Engine Shaft Square Key 3/16 x 1.75 1
38 960-327 Gas Engine (Kohler 6.5)   1
39 710-693 Hex Head Bolt ZP, M8*40 4
40 750-638 Flat Washer ZP, M8 8
41 960-429 Vibration Isolator 22/28 Ton Ø24*Ø9*3 4
42 720-500 Lock Nut ZP, M8 4
43 540-910 Reservoir Tank GD13T21, OLD GD16T21 (w/ or w/o fender frame, mounting bracket W: 86mm) 1
540-963 Reservoir Tank New GD16T21 (w/o fender frame, mounting bracket W: 101mm)
540-949 Reservoir Tank GD20T24 (w/o fender frame, mounting bracket W: 115mm)
44 540-328 Vented Dipstick Ø4*83 1
45 730-655 O Seal Ring Ø15*3.1 2
46 710-877 Oil Drain Screw PH, M16*15 1
47 730-064 O Seal Ring Ø20*2.4 1
48.1 540-074 Suction Filter Straight Adapter, Hex32 1
48.2 730-602 O Seal Ring Ø28*3.1 1
49 760-377 Hose Clamp 1" 2
50 560-315 Oil Suction Hose Ø24*320 1
51 330-674 Fender Support   2
52 710-661 Hex Head Bolt ZP, M8*25 (8.8) 2
53 710-637 Hex Head Bolt ZP, M8*20 (8.8) 6
54 750-699 Flat Washer ZP, Ø9*Ø24*1.5 2
55 750-638 Flat Washer ZP, M8 14
56 720-500 Lock Nut ZP, M8 8
57 330-612 Fender   2
58 330-524 Wheel Pneumatic, 16*4.8*8 in. 2
59 720-836 Castle Nut ZP, 1-14 2
60 760-744 Split Pin ZP, Ø4*50 2
61 330-631 Dust Cap   2
62 TJ-20 Wheeled Trailer Jack   1
63 710-333 U-bolt ZP, M10 x 190 1
64 320-457 Jack Clamp 13 Ton W26 2
320-459 Jack Clamp 16 Ton W35.5
65 710-669 Hex Head Bolt ZP, M10*130 (8.8) 2
66 750-525 Flat Washer ZP, M10 6
67 720-120 Lock Nut ZP, M10 4
68 320-431 Tongue   1
69 320-437 Hitch Coupler 2"*3" 1
70 320-421 Safety Chain   2
71 710-622 Hex Head Bolt ZP, M12*100 (8.8) 2
72 750-621 Flat Washer ZP, M12 4
73 720-536 Lock Nut ZP, M12 2
74 320-913 Log Tray   2
75 710-895 Inner Hex Head Bolt Black Oxide, M8*20 8
76 750-075 Spring Washer Black Oxide, M8 8
77 750-160 Flat Washer Black Oxide, M8 8
