Boss Industrial 6 Inch 15hp Gas Briggs & Stratton Powered Chipper Shredder Parts (CGR60)

Boss Industrial 6 Inch 15hp Gas Briggs & Stratton Powered Chipper Shredder Parts (CGR60)

$70.00

Boss Log Splitters

CGR60 Parts #1-100

Out of stock

GP1500.1.1

-
+

Click Here to be notified by email when Boss Industrial 6 Inch 15hp Gas Briggs & Stratton Powered Chipper Shredder Parts (CGR60) becomes available.

Buy Boss Industrial 6 Inch 15hp Gas Briggs & Stratton Powered Chipper Shredder Parts. If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 800-780-2677

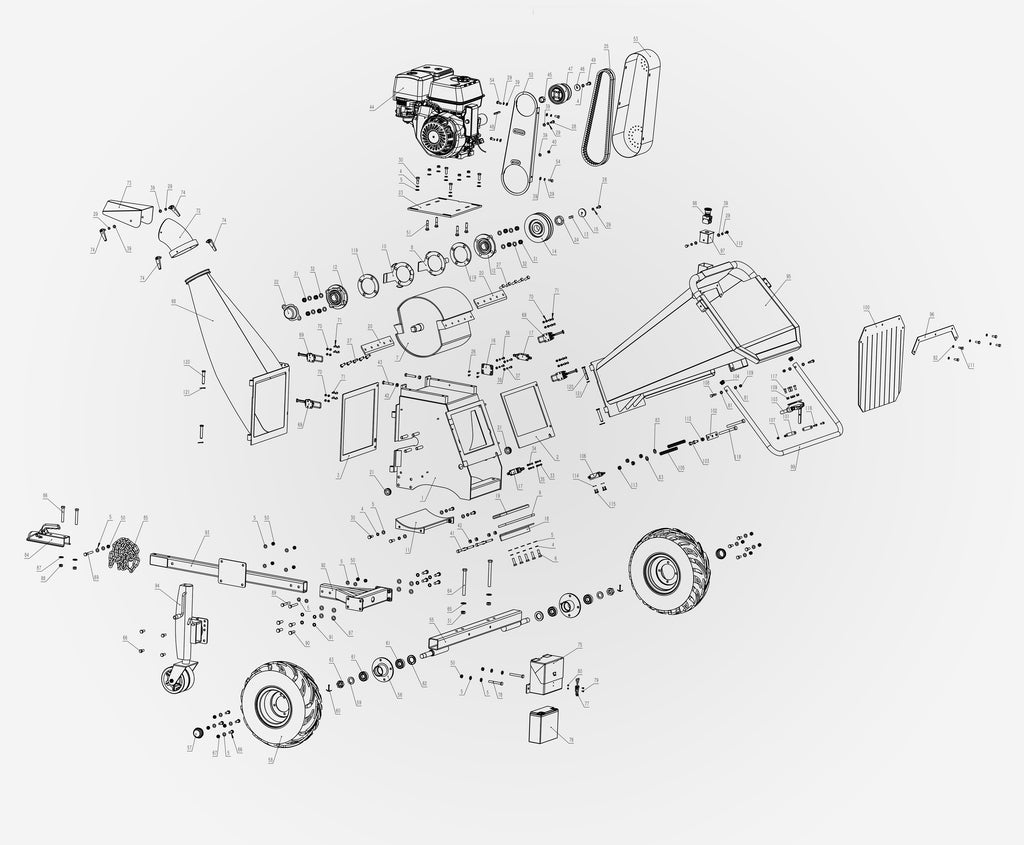

Please refer to the Table below to choose the parts correctly.
REF# PART# PART NAME SPECIFICATION QTY PER SECTION
1 GP1500.1.1 Roller housing 484*323*559mm 1
2 GP1500.1-10 Rubber to Feeding Chute 319*368,δ5 1
3 GP1500.1-11 Discharge to frame rubber 381*368,δ5 1
4 GB／T 93-1987 Standard elastic washer (assembly) 10 10 14
5 GB／T 95-2002 Flat washer Class C 10 10 39
6 GB／T 5783-2016 Hexagon head bolt full thread M10×35 M10×35 5
7 GP1500.1.2 Roller φ340x300 1
8 GP1500.1-1 Bearing base plate <R> φ132*35*196 δ3 1
9 GP1500.1-4 Anvil base plate 300*50*10 δ10 1
10 GP1500.1-5 Bearing base plate <L> φ132*35*196 δ3 1
11 GP1500.1.3 Roller baseplate 189*311*54 1
12 GB／T 7810-2017 Bearing UCFC207 2
13 GB／T 1096-2003 Flat Key for pulley B10×8×30 1
14 GP1500.1-3 Pulley φ160*φ35*44 1
15 GP1500.1-9 Pulley detent ring φ45*φ8*6 δ6 1
16 GP1500.1-7 Switch base plate 56*70*6 δ6 1
17 AST-SG.2-9 Safety switch ME8112 2
18 GP1500.1-8 Anvil adjusting plate 45*35*295 δ5 1
19 46152.66.1 Anvil 300*50*15 1
20 46152.66.2 Blade 300*55*6 2
21 46152.66.3 Double-sided bushing (hole 28 / slot 6) φ38*φ23*13 2
22 GP1500.1-6 Bearing cover 136*91*31.5 δ1.5 1
23 GP1500.1-2 Engine base plate 280*323*8 1
24 GP1500.1-12 Pulley locating bush φ50*φ35.5*15 1
25 46152.66.4 Belt 17×1194Li 2
26 GB／T 819.1- Cross grooved countersunk screw M5×14 4
27 GB／T 5781-2000 Hexagon head bolt M10×25 M10×25 10
28 GB／T 5783-2000 Hexagon head bolt M8×25]-GP1500 M8×25 2
29 GB／T 93-1987 Standard elastic washer (assembly) 8 8 10
30 GB／T 5783-2016 Hexagon head bolt full thread M10×30 M10×30 8
31 GB／T 6172.2-2016 Non-metal insert Hexagon Lock Nut (M14) M14 10
32 GB／T 848-2002 Small washer Class A (14) 14 8
33 GB／T 5783-2016 Hexagon head bolt full thread M5×16 M5×16 4
34 GB／T 93-1987 Standard elastic washer (assembly) 5 5 4
35 GB／T 95-2002 Flat washer Class C 5 5 4
36 GB／T 5783-2016 Hexagon head bolt full thread M6×16 M6×16 4
37 GB／T 93-1987 Standard elastic washer (assembly) 6 6 4
38 GB／T 95-2002 Flat washer Class C 6 6 4
39 GB／T 97.1-2002 Flat washer 8 8 10
40 GB／T 6172.2-2016 Non-metal insert hexagon lock thin nut M8 M8 1
41 GB／T 70.1-2008 Hexagonal cylindrical head screw M10×60 M10×60 4
42 GB／T 6170-2015 Type 1 hexagon nut M10 M10 6
43 GB／T 5783-2016 Hexagon head bolt full thread M10×60 M10×60 2
44 Engine B&S XR950 Shaft 25.4mm 1
45 GP1500.2-1 Clutch pad sleeve φ32*φ25.6*14 1
46 GP1500.2-2 Clutch detent ring φ35*φ10*4 1
47 2B96-25-14hp Clutch φ96*φ25*77 1
48 46152.66.5 Flat Key 6.3x6.3-56 6.3x6.3-56 1
49 GB／T 5783-2016 Hexagon head bolt full thread 3/8-24x25.4 3/8-24x25.4 1
50 GB／T 6172.2-2016 Non-metal insert hexagon lock thin nut M10 M10 13
51 GB/T12-2013 Round head square neck bolt M10×50 M10×50 4
52 GP1500.10.1 Belt cover bottom plate 596.5*185*25 δ3 1
53 GP1500.10.2 Belt Cover 601*190*120 1
54 GB／T 5783-2016 Hexagon head bolt full thread M8×20 M8×20 4
55 GP1500.3.1 Wheel axle 1104*95*60 1
56 DGS1500.1.2.2 Axle flange φ136*90 2
57 KLD300BYC.2.3-1 Rear axle end cover φ58*27 2
58 DGS1500.1.2-2 Tubeless Tire 19*7.00-8 2
59 GB／T 848-2002 Small gasket Class A 24 24 2
60 GB／T 91-2000 Cotter pin 4×45 4×45 2
61 GB/T 276-2013 Deep groove ball bearings [60000-2Z] 6205-2Z 6205-2Z 4
62 GB／T 13871.1-2007 Oil Seal (FB Type) 30×52 (FB Type) 30×52 2
63 GB／T 6181-1986 Hexagon slotted thin nuts Class A and Class B M24 M24 2
64 GB／T 5782-2016 Hexagon head bolt (M14)×140 (M14)×140 2
65 GB／T 95-2002 Flat washer Class C 14 14 2
66 GB／T 5783-2016 Hexagon head bolt full thread M10×25 M10×25 12
67 GB/T 889.2-2000 Type 1 non-metal insert hexagon lock nut fine teeth M8 M8 8
68 GP1500.8.1 Lower dischage chute 990*373*381 1
69 46152.6.8 Buckle 431 4
70 GB／T 6172.2-2016 Non-metal insert hexagon lock nut M6 M6 16
71 GB／T 70.2-2015 Hexagon flat round head screw M6x16 M6×16 16
72 GP1500.8.2 Discharge Chute - Round φ165*205 1
73 GP1500.8-1 Deflector 240*137*104 δ1.5 1
74 M8-L15 Adjustable clamp handle - external thread M8*15 M8*15 4
75 46152.9.1.0 Battery Cover 255*179*97 1
76 DGS1500.4-8 Battery 20Ah 12V 1
77 WG.DK.1.4001 Buckle latch 4001 1
78 GB／T 5782-2016 Hexagon head bolt M10×80 M10×80 2
79 GB/T819.1-2016 Cross grooved countersunk screw M4*10 2
80 GB/T6172.2-2016 Thin hexagon lock nut M4 M4 2
81 GB／T 95-2002 Flat washer 8 4 4
82 GB／T 93-1987 Elastic washer 8 4 5
83 GB／T 95-2002 Flat washer 12 12 2
84 PTB.1-1 Coupler 2in 1
85 DGS1500.1.4-2 Safety Chain 42*23*φ6 L680 1
86 GB／T 5782-2016 Hexagon head bolt M12×80 M12×80 2
87 GB／T 95-2002 Flat washer Class C 12 12 10
88 GB／T 6172.2-2016 Non-metal insert hexagon lock thin nut M12 M12 2
89 GB／T 5782-2016 Hexagon head bolt M10×70 M10×70 3
90 GB／T 5783-2016 Hexagon head bolt full thread M12×35 M12×35 8
91 GB／T 93-1987 Standard elastic washer (assembly) 12 12 8
92 GP1500.4.1 Tow bar mounting base 357.5*311*70 1
93 GP1500.4.2 Tow bar 1000*140*50 1
94 DGS1500.1.4.1-3 Jockey wheel 6in 1
95 46152.6.1.0 Feeding chute 1097*686*615 1
96 46152.6.1.8.1 Rubber mounting plate 478*93*3 1
97 MDGS1500.7.3.1 Emergecy stop switch welding box 60*60*56 1
98 46152.66.7 Emergency Stop Switch LA38-11ZS 1
99 46152.6.2.0 Emergency Stop Press Bar 740*487.5 φ25 1
100 46152.6.3 Rubber chip baffle 484*471*4 1
101 46152.6.4 Emergency stop connecting rod 66*16*4 2
102 46152.6.5 Emergency stop press plate 108*30*3 1
103 46152.6.6 Push-pull quick clamp TC3-10 TC3-10 1
104 WG.GS.1.25 Round tube plug φ25 φ25 2
105 GP1500.6.4-2 Return spring O16*O1.5*115 φ16*φ1.5*115 2
106 AST-SG.2-9 Safety Switch ME8112 ME8112 1
107 GB／T 889.1-2015 Non-metal insert hexagon lock nut M6 M6 2
108 gb/t27 Hexagonal head reamed hole bolt M8*45 M8*45 2
109 GB/T 889.1 Hexagon lock nut M8 M8 6
110 GB／T 5783-2016 Hexagon head bolt full thread M8×16 M8×16 2
111 GB／T 5783-2016 Hexagon head bolt full thread M8×20 M8×20 5
112 GB／T 889.1-2015 Hexagon lock nut M10 M10 1
113 GB/T 6172.2 Non-metal insert hexagon lock nut M12 M12 4
114 GB／T 93-1987 Elastic washer 5 5 4
115 GB/T818 Cross pan head screw M5 x 16 M5*16 4
116 GB／T 5783-2016 Hexagon head bolt full thread M6×25 M6×25 2
117 GB／T 70.2-2015 Hexagon flat round head screw M8×20 M8×20 4
118 GB／T 5782-2016 Hexagon head bolt M12×110 M12×110 2
119 P4206.1-15 Bearing base plate φ132x8 2
120 GB/T882-2008 Pin type B φ12x70 φ12x70 4
121 GB／T 91-2000 Cotter pin 3.2×22 3.2×22 4
