Boss Industrial 16 Ton Electric Log Splitter Parts (ED16T21)
$496.25
Boss Log Splitters
ED16T21 Parts
1 In Stock
310-857
Buy Boss Industrial 16 Ton Electric Log Splitter Parts. If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 800-780-2677

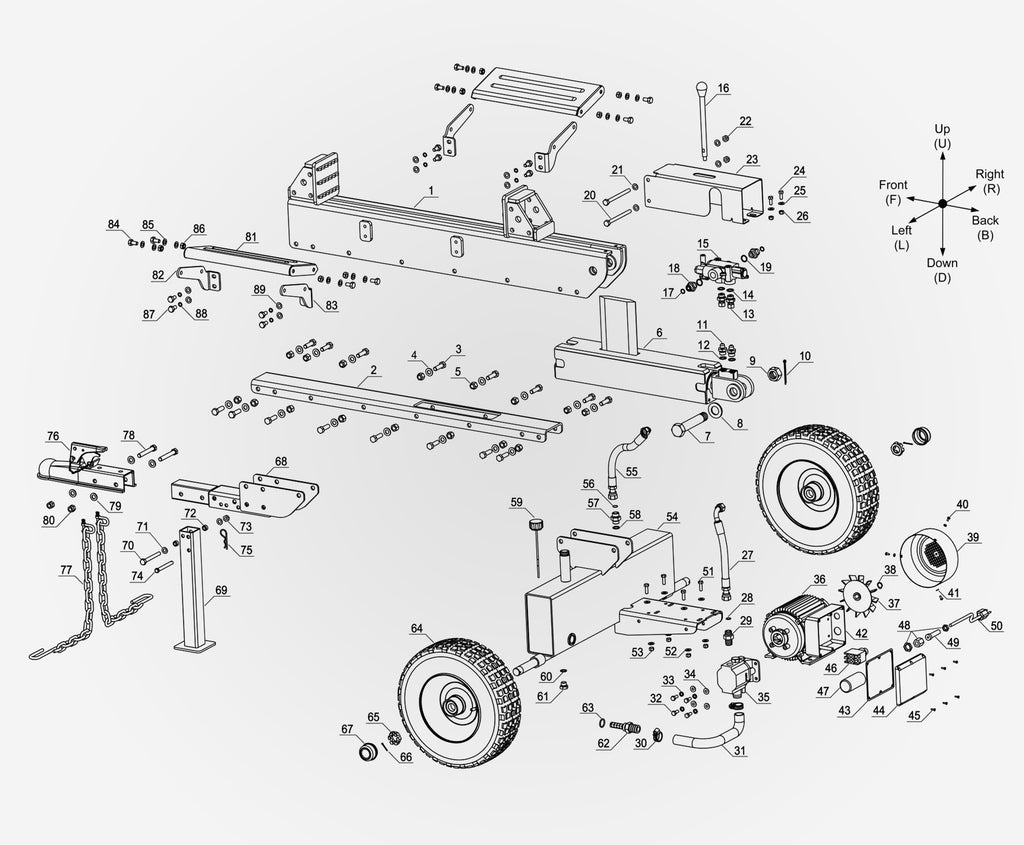

Please refer to the Table below to choose the parts correctly.
| REF # | PART # | PART NAME | SPECIFICATIONS | QTY PER SECTION |
| 1 | 310-857 | Machine Body w/ End Plates | 13TN | 1 |
| 2 | 310-851 | Machine Body Bottom | 13T | 1 |
| 3 | 710-438 | Hex Head Bolt | ZP, M12*35 | 16 |
| 4 | 750-621 | Flat Washer | ZP, M12 | 16 |
| 5 | 720-536 | Lock Nut | ZP, M12 | 16 |
| 6 | 530-480 | Cylinder | 3”x18.4” | 1 |
| 7 | 760-137 | Pin | PH, M27*141 | 1 |
| 8 | 750-623 | Flat Washer | PH, M27*4 | 1 |
| 9 | 720-815 | Bored Nut | PH, M27 | 1 |
| 10 | 760-744 | Split Pin | Ø4*50 | 1 |
| 11 | 510-211 | Hydraulic Adaptor | Straight, Hex24 | 2 |
| 12 | 730-082 | O Seal Ring | Ø22*2.4 | 2 |
| 13 | 510-224 | Hydraulic Adaptor | Straight, Hex24 – Swing, Hex19 | 2 |
| 14 | 730-082 | O Seal Ring | Ø22*2.4 | 2 |
| 15 | 520-768 | Hydraulic Valve w/ Short lever | 1 | |
| 16 | 520-405 | Control Handle Lever | Ø15*190 | 1 |
| 17 | 730-619 | O Seal Ring | Ø15*1.9 | 2 |
| 18 | 510-448 | Hydraulic Adaptor | Straight, Hex27*35 | 2 |
| 19 | 730-082 | O Seal Ring | Ø22*2.4 | 2 |
| 20 | 710-669 | Hex Head Bolt | ZP, M10*130 | 2 |
| 21 | 750-525 | Flat Washer | ZP, M10 | 4 |
| 22 | 720-120 | Lock Nut | ZP, M10 | 2 |
| 23 | 350-200 | Valve Cover | 13TN | 1 |
| 24 | 710-637 | Hex Head Bolt | ZP, M8*20 | 2 |
| 25 | 750-638 | Flat Washer | ZP, M8 | 2 |
| 26 | 720-500 | Lock Nut | ZP, M8 | 2 |
| 27 | 560-403 | Hydraulic Hose (Pump - Valve) | SA-19/SS-19,1/2”*300 | 1 |
| 28 | 730-619 | O Seal Ring | Ø15*1.9 | 1 |
| 29 | 510-432 | Hydraulic Adaptor | Straight, Z1/2, Hex27*45 | 1 |
| 30 | 760-377 | Hose Clamp | 1” | 2 |
| 31 | 560-307 | Oil Suction Hose | Ø19*330 | 1 |
| 32 | 710-637 | Hex Head Bolt | ZP, M8*20 | 4 |
| 33 | 750-834 | Spring Washer | ZP, M8 | 4 |
| 34 | 750-638 | Flat Washer | ZP, M8 | 4 |
| 35 | 550-652 | Two Stage Pump | 4.2 / 1.0, 5GPM | 1 |
| 36 | 910-269 | Electric Motor, Main Body | 2.5 HP | 4 |
| 37 | 910-194 | Fan | 1 | |
| 38 | 760-548 | Circlip for Shaft | Ø16 | 1 |
| 39 | 910-153 | Fan Cover | Ø174 | 1 |
| 40 | 740-477 | Cross Recess Pan Head Screw | ZP, M4*10 | 3 |
| 41 | 750-270 | Flat Washer | ZP, M4 | 3 |
| 42 | 920-011 | Connecting Box (Bottom) | 1 | |
| 43 | 920-506 | Connecting Box (Rubber Ring) | 1 | |
| 44 | 920-853 | Connecting Box (Cover) | 1 | |
| 45 | 740-603 | Cross Recess Pan Head Screw | PH, M4*10 | 6 |
| 46 | 920-943 | Power Switch | 1 | |
| 47 | 920-981 | Capacitor | 80uf | 1 |
| 48 | 930-880 | Cable Fastener | 1 | |
| 49 | 930-511 | Cable Bushing | 1 | |
| 50 | 930-183 | Power Cable | STJW 3/C 12AWG, Ø3.31*200 | 1 |
| 51 | 710-661 | Hex Head Bolt | ZP, M8*25 | 4 |
| 52 | 750-638 | Flat Washer | ZP, M8 | 8 |
| 53 | 720-500 | Lock Nut | ZP, M8 | 4 |
| 54 | 540-910 | Reservoir Tank | 1 | |
| 55 | 560-409 | Oil Return Hose | SA-19/SS-19, 1/2”*350 | 1 |
| 56 | 730-619 | O Seal Ring | Ø15*1.9 | 1 |
| 57 | 510-448 | Hydraulic Adaptor | Straight, Hex27*35 | 1 |
| 58 | 730-082 | O Seal Ring | Ø22*2.4 | 1 |
| 59 | 540-329 | Dipstick w/ Ventilator | Ø4.35*186 | 1 |
| 60 | 730-064 | O Seal Ring | Ø20*2.4 | 1 |
| 61 | 710-877 | Oil Drain Bolt | PH, M16*15 | 1 |
| 62 | 540-034 | Inlet Filter | Straight, Hex32-Filter Ø20*55 | 1 |
| 63 | 730-602 | O Seal Ring | Ø28*3.1 | 1 |
| 64 | 330-515 | D.O.T. Tubeless Tire / Wheel | 16*4.8*8 in. | 2 |
| 65 | 720-836 | Castle Nut | ZP, 1-14 | 2 |
| 66 | 760-744 | Split Pin | ZP, Ø4*50 | 2 |
| 67 | 330-631 | Dust Cap | 2 | |
| 68 | 320-434 | Tongue | 13TN | 1 |
| 69 | 320-474 | Jack Stand | 5*5*42 | 1 |
| 70 | 710-539 | Hex Head Bolt | ZP, M10*90 | 1 |
| 71 | 750-525 | Flat Washer | ZP, M10 | 2 |
| 72 | 320-473 | Spacer | PH, Ø16*9 | 2 |
| 73 | 720-120 | Lock Nut | ZP, M10 | 1 |
| 74 | 760-155 | Clevis Pin | ZP, Ø10*85 | 1 |
| 75 | 760-679 | Spring Clip | ZP, Ø3 | 1 |
| 76 | 320-420 | Hitch Coupler | 2”*2” | 1 |
| 77 | 320-421 | Safety Chain | 2 | |
| 78 | 710-433 | Hex Head Bolt | ZP, M12*75 | 2 |
| 79 | 750-621 | Flat Washer | ZP, M12 | 4 |
| 80 | 720-536 | Lock Nut | ZP, M12 | 2 |
| 81 | 320-942 | Log Tray Plate | WD | 2 |
| 82 | 320-945 | Log Tray Frame (FL, BR) | ED | 2 |
| 83 | 320-946 | Log Tray Frame (FR, BL) | ED | 2 |
| 84 | 710-520 | Hex Head Bolt | ZP, M10*25 | 8 |
| 85 | 750-525 | Flat Washer | ZP, M10 | 16 |
| 86 | 720-120 | Lock Nut | ZP, M10 | 8 |
| 87 | 710-516 | Hex Head Bolt | ZP, M10*20 | 8 |
| 88 | 750-401 | Spring Washer | ZP, M10 | 8 |
| 89 | 750-525 | Flat Washer | ZP, M10 | 8 |
