Boss Industrial 7 Ton Electric Log Splitter Parts (ES7T20)
Boss Log Splitters
ES7T20 Parts
91 In Stock
310-325
Buy Boss Industrial 7 Ton Electric Log Splitter Parts. If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you, 800-780-2677

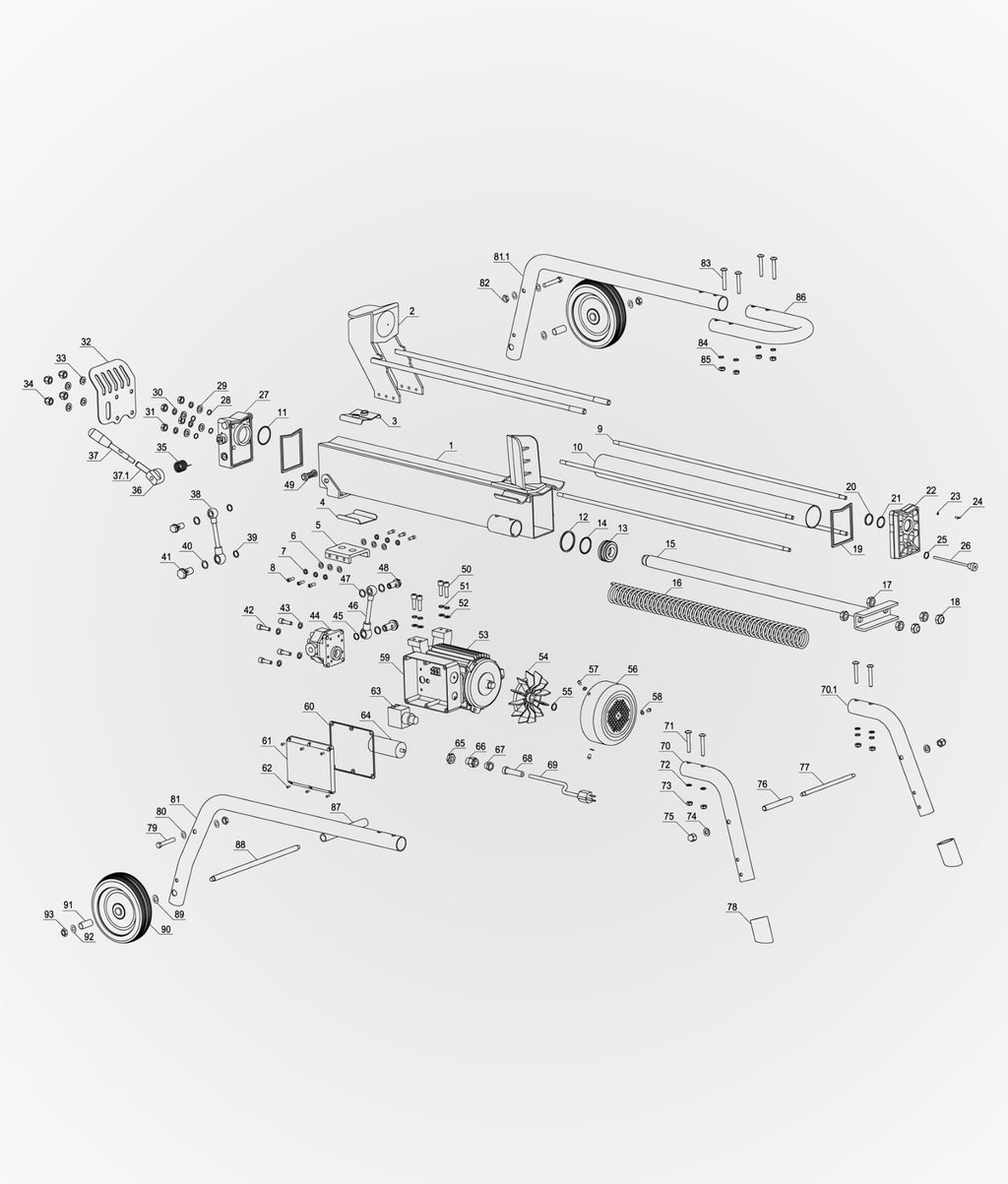

Please refer to the Table below to choose the parts correctly.
Item | Part No. | Description | Specifications | Qty |
1 | 310-325 | Machine Body w/ End Wedge (Refurbished) | 7 ton | 1 |
2 | 530-101O | Ram Cap & Shaft | Pre 2016 Models | 1 |
530-101N | Ram Cap & Shaft | 2016+ Models | ||
3 | 530-475 | Upper Nylon Cushion | 1 | |
4 | 530-898 | Lower Nylon Cushion | 1 | |
5 | 530-616 | Base Plate of Ram | 1 | |
6 | 750-520 | Flat Washer | Black Oxide, M10*1.5 | 6 |
7 | 750-355 | Spring Washer | Black Oxide, M10*3 | 6 |
8 | 710-432 | Inner Hex Bolt | Black Oxide, M10*25 | 6 |
9 | 710-685 | Double-Screw Bolt | M10*813 | 4 |
10 | 530-322 | Cylinder Tube | Ø55*743*2.5 | 1 |
11 | 730-847 | O Seal Ring | Ø55*3.1 | 1 |
12 | 730-446 | Seal Cover | Ø55 | 1 |
13 | 530-624 | Piston Head | Ø54.5*22 | 1 |
14 | 730-924 | O Seal Ring | Ø50*3.5 | 1 |
15 | 530-434 | Piston Shaft w/ Connecting Plate | 1 | |
16 | 530-580 | Retracting Spring | 1 | |
17 | 720-156 | Nut | Zinc, M14 | 4 |
18 | 720-884 | Lock Nut | Zinc, M14 | 2 |
19 | 730-772 | Paper Seal Ring | 2 | |
20 | 730-186 | O Seal Ring | Ø30*2.65 | 1 |
21 | 730-139 | Dirt Proof Ring | Ø30 | 1 |
22 | 540-853 | Front Reservoir Cover | 1 | |
23 | 730-094 | O Seal Ring | Ø5*1 | 1 |
24 | 540-537 | Vent Plug | Zinc, M4*10 | 1 |
25 | 750-158 | Copper Seal Washer | M14*1 | 1 |
26 | 540-333 | Oil Dipstick w/ Oil Drain Bolt | Ø5*190/M14*12*1.5 | 1 |
27 | 520-974 | Hydraulic Valve | 1 | |
28 | 730-198 | O Seal Ring | Ø14*2.4 | 4 |
29 | 750-532 | Flat Washer | Black Oxide, M10*2.5 | 4 |
30 | 750-355 | Spring Washer | Black Oxide, M10*3 | 4 |
31 | 720-465 | Nut | Black Oxide, M10 | 4 |
32 | 350-233 | Position Shield | 1 | |
33 | 750-525 | Flat Washer | Zinc, M10*1.5 | 4 |
34 | 720-678 | Snap Head Nut | Zinc, M10 | 4 |
35 | 520-596 | Torsion Spring | 1 | |
36 | 520-293 | Control Handle Bracket | 1 | |
37 | 520-401 | Control Handle Lever w/ Grip | Ø12.5*116 | 1 |
520-401HK | Handle Kit (#35-37.1) | |||
37.1 | 520-400 | Short Lever | Ø12.5*54 | 1 |
38 | 560-587 | Oil Tube | Ø14-Ø10*100*2 | 1 |
39 | 730-624 | O Seal Ring | Ø18*1.9 | 2 |
40 | 750-158 | Copper Seal Washer | M14*1 | 2 |
41 | 710-896 | Oil Tube Screw | Black Oxide, M14*30*1.5 | 2 |
42 | 710-895 | Inner Hex Head Bolt | Black Oxide, M8*20 | 4 |
43 | 750-075 | Flat Washer | Black Oxide, M8*2.5 | 4 |
44 | 550-203 | Hydraulic Pump | 1 | |
45 | 730-624 | O Seal Ring | Ø18*1.9 | 1 |
46 | 560-587 | Oil Tube | Ø14-Ø10*100*2 | 1 |
47 | 750-158 | Copper Seal Washer | M14*1 | 3 |
48 | 710-896 | Oil Tube Screw | Black Oxide, M14*30*1.5 | 2 |
49 | 540-311 | Oil Filter | 1 | |
50 | 710-541 | Inner Hex Head Bolt | Black Oxide, M8*30 | 4 |
51 | 750-075 | Flat Washer | Black Oxide, M8*2.5 | 4 |
52 | 750-160 | Flat Washer | Black Oxide, M8*1 | 4 |
53 | 940-611 | Electric Motor 2 HP | YY80AL-2, 110 Volt, 2.0HP, 60 Hz | 1 |
54 | 910-194 | Fan | 1 | |
55 | 760-548 | Circlip for Shaft | Ø16 | 1 |
56 | 910-154 | Fan Cover | Ø162 | 1 |
57 | 750-270 | Flat Washer | Zinc, M4*1 | 3 |
58 | 740-477 | Cross Recess Pan Head Screw | Zinc, M4*10 | 3 |
59 | 920-011 | Connecting Box (Bottom) | 1 | |
60 | 920-506 | Connecting Box (Rubber Ring) | 1 | |
61 | 920-853 | Connecting Box (Cover) | 1 | |
62 | 740-603 | Cross Recess Pan Head Screw | Black Oxide, M4*10 | 6 |
63 | 920-943 | Power Switch | 1 | |
64 | 920-980 | Capacitor | 60uf | 1 |
65 | 930-800 | Whole Cable Fastener | 1 | |
66 | ||||
67 | ||||
68 | 930-511 | Cable Bushing | 1 | |
69 | 930-182 | Power Cable | STJW 3/C 14AWG, Ø2.08*1600 | 1 |
70 | 320-812 | Front Leg (R) | 2 | |
70.1 | 320-811 | Front Leg (L) | 2 | |
71 | 740-526 | Cross Recess Pan Head Screw | Zinc, M8*55 | 4 |
72 | 750-638 | Flat Washer | Zinc, M8*1 | 4 |
73 | 720-500 | Lock Nut | Zinc, M8 | 4 |
74 | 750-525 | Flat Washer | Zinc, M10*1.5 | 2 |
75 | 720-678 | Snap Head Nut | Zinc, M10 | 2 |
76 | 320-666 | Front Support Bar Bushing | Ø13*1*105 | 1 |
77 | 320-563 | Front Support Bar | Ø10*205 | 1 |
78 | 320-825 | Bumper | 2 | |
79 | 740-526 | Cross Recess Pan Head Screw | Zinc, M8*55 | 2 |
80 | 750-638 | Flat Washer | Zinc, M8*1 | 4 |
81 | 320-414 | Joint Leg and Log Holder (R) | 2 | |
81.1 | 320-413 | Joint Leg and Log Holder (L) | 2 | |
82 | 720-500 | Lock Nut | Zinc, M8 | 2 |
83 | 740-526 | Cross Recess Pan Head Screw | Zinc, M8*55 | 4 |
84 | 750-638 | Flat Washer | Zinc, M8*1 | 4 |
85 | 720-500 | Lock Nut | Zinc, M8 | 4 |
86 | 320-748 | U Shape Towing Handle | 1 | |
87 | 340-090 | Wheel Axle | Ø12.7*335 | 1 |
88 | 340-250 | Axle Bushing | Ø16*1*168 | 1 |
89 | 750-146 | Flat Washer | Zinc, 1/2*2 | 2 |
90 | 330-214 | Wheel | 7"*1.8" | 2 |
91 | 340-132 | Bearing Spacer | Ø16*102*36.8 | 2 |
92 | 750-525 | Flat Washer | Zinc, M10*1.5 | 2 |
93 | 720-120 | Lock Nut | Zinc, M10 | 2 |
